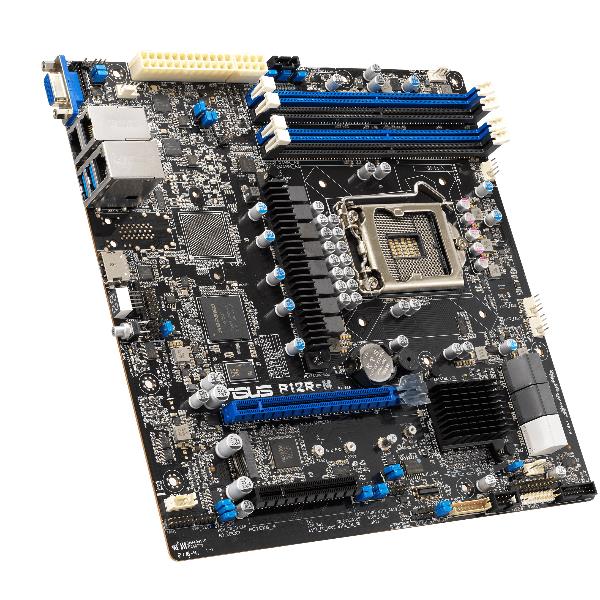

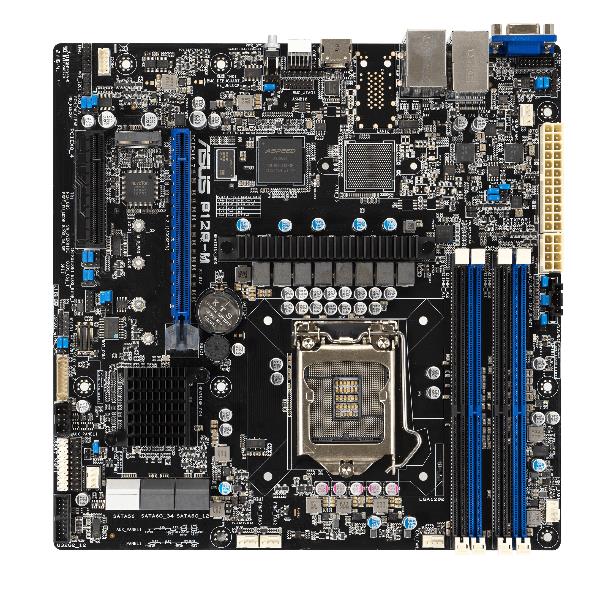

ASUS – P12R-M

P12R-M
Intel® Xeon® E-2300 LGA 1200 Micro-ATX server motherboard with four DIMM and one M.2 slot, plus dual LAN, six SATA, one HDMI, two PCIe 4.0 slots, two USB 3.2 Gen 2, Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM

Ideal for remote office/branch office (ROBO) use and everyday business environments
Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
Flexible expandability with six native SATA HDDs and two PCI Express 4.0 slots
Dual Intel I210AT Gigabit Ethernet with teaming support
One M.2 for up to 32 Gbps performance for faster OS booting
HDMI 1.4 support for high-resolution display maintenance and monitoring
Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency

SPECIFICHE TECNICHE

Connettore Video	1 x HDMI, 1 x VGA
Alimentazione	24-pin ATX, 1 x 8-pin ATX V
Chipset	Intel C242

CANALI/CONNETTORI

USB 2.0 – interni	1
USB 3.2 Gen 2 – interni	2
USB 3.2 Gen 2 – retro	2
SATA revision 3.0 (SATA 6 Gbit/s)	6
PCI-Express 16x	1
PCI-Express 1x	2
Connettori Speciali	0
SATA M.2	1
Porte Seriali	1
Ventole chassis	2

PROCESSORE

Socket	Socket H5 (LGA 1200)
Famiglia processore	Intel
CPU compatibili	Intel® Xeon E processors

CONTROLLER

Raid	0/1/5/10
LAN	2 x Intel® I210AT + 1 x Mgmt LAN

VIDEO

GPU integrata	Sì
Modello scheda video	Non presente
Connettori scheda video	Sì
Tecnologia multi GPU	no

AUDIO INTEGRATO

Modello scheda audio	Not Integrated
Connettori scheda audio	0

MEMORIA

Tipo Moduli	DDR4
Espansione max	128 GB
Frequenza max	3200 MHz
Numero Slot	4
Dual Channel	Sì
ECC	Sì
Non ECC	Sì
Frequenza max Overclock	3200 MHz

GENERALE

Dotazione Hardware	cavi SATA, 4 x plate for LGA1200
Dotazione Software	ASUS Control Center (Classic)
Peso	1.2 gr
Controllo CSM	Sì

DIMENSIONI

Form factor	Micro-ATX

DIMENSIONI CON IMBALLO

Peso con imballo	1.3 kg
