GV-N3060GAMING OC-12GD

GIGABYTE GeForce RTX 3060 Gaming OC 12G (REV2.0)
WINDFORCE 3X  COOLING SYSTEMThe WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.

SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.

HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

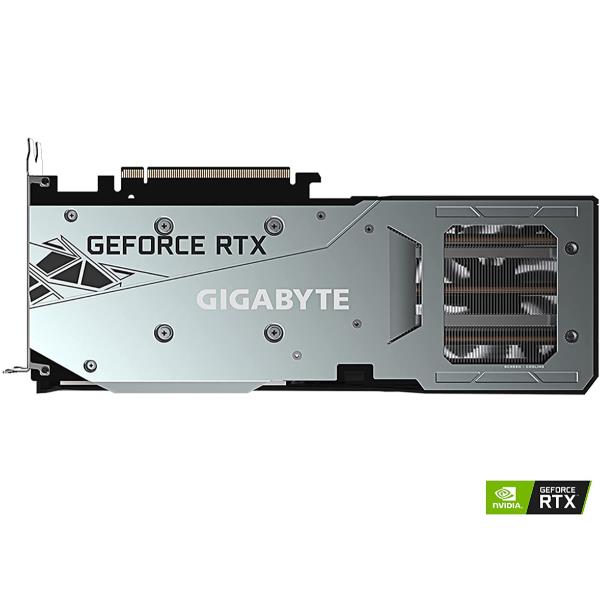

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

POWER INDICATORWhen experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.

CARATTERISTICHE GPU

Nome scheda	GF RTX3060
Processore	NVIDIA GeForce RTX 3060
Memoria video	12 GB
Tipo di memoria video	GDDR6
Tipo interfaccia	PCI Express 4.0 16x
Risoluzione massima (larghezza)	7680 px
Risoluzione massima (altezza)	4320 px
Ventola	Sì
Memory BUS	192 Bit
Versione DirectX	12
Velocità della memoria	1500 MHz
Velocità GPU	1807 MHz

REQUISITI DI SISTEMA

Tipo connettori di alimentazione	8 PIN
Numero connettori di alimentazione	1
Alimentatore minimo consigliato	550 W

CONNETTIVITÀ E FUNZIONI

Uscita HDMI	Sì
N. Schermi supportati	4
Uscita DisplayPort	Sì
Tecnologia di accelerazione video	Nvidia CUDA
Tecnologia multi GPU	Nessuna

DIMENSIONI SENZA IMBALLO

Altezza	41 mm
Larghezza	282 mm
Profondità	117 mm
Peso	790 gr
