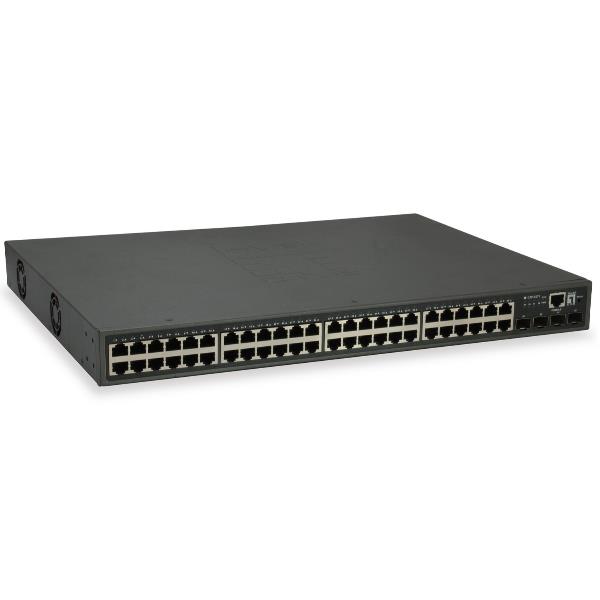

LEVELONE GTP-5271 – SWITCH 52-PORTE GIGABIT L3 LITE MANAGED POE 400W, 4x 10GbE SFP+

1.404,84 €

Prezzo IVA esclusa
Codice MEPA99045491ABX

GTP-5271

1 disponibili

Codice:45491ABX
Categoria:
€Finanziabile con fondi PNRR e bandi

Acquistabile con i fondi degli avvisi attivi — ti aiutiamo a individuare il bando giusto per la tua scuola.

Vedi tutti i bandi attivi →

Descrizione

Il GTP-5271 ultima generazione di switch Gigabit PoE gestito L3 Lite a 52 porte, con connettività a 4 porte 10G SFP +. offre potenti funzionalità L2 e L3 Lite, una migliore funzionalità PoE con budget di alimentazione PoE da 400 W e usabilità, Lo switch supporta anche la gestione IPv6 più avanzata, la sicurezza IPv6 e il controllo multicast IPv6 in conformità con la crescita dell’implementazione IPv6.
Gli switch GTP-5271 abilitati per PoE dispongono di una certificazione IEEE 802.3af / at. sono ideali per le aziende che desiderano alimentare telefoni VoIP, punti di accesso wireless o telecamere di rete. Lo switch PoE a 48 porte GTP-5271 supporta fino a 30 W di potenza in uscita offrendo flessibilità nell’allocazione di potenza per una varietà di dispositivi alimentati, consentendo di scalare le operazioni per soddisfare la crescita aziendale, i risparmi sui costi operativi e la facilità di gestione.

Caratteristiche principali

– 48 porte Gigabit PoE e 4 slot SFP + da 10 Gigabit
– Conforme a IEEE 802.3af / at PoE per semplificare la distribuzione e l’installazione
– Budget di alimentazione PoE totale: 400 W, fino a 30 W per porta
– Lo stacking virtuale supporta fino a 4 switch in un unico stack logico per gestione, monitoraggio e configurazione unificati
– Supporta VLAN basata su porta, tagging VLAN IEEE 802.1Q e GVRP
– IEEE 802.1d / w / s Spanning Tree Protocol (STP) e mirroring delle porte
– Supporta il funzionamento di rete IPv4 / IPv6
– Supporta il controllo della tempesta unicast / broadcast / multicast sconosciuto
– Gestione MLD, Telnet, SNMP V1, V2c e V3, RMON, browser Web e TFTP
– Filtraggio IP multicast tramite IGMP Snooping V1 / V2 / V3
– Dynamic ARP Inspection (DAI) protegge gli switch dallo spoofing ARP

CARATTERISTICHE TECNICHE

Power over Ethernet (PoE) Sì
Gestione Managed (CLI)
Supporto Routing (Layer 3) Sì
Nr. porte PoE 48
Vlan supportate 4096
Stackable Sì
PoE Budget 400 W
Quality Of Service (QOS) Sì
Modalità Stacking Virtual Stacking
Dimensioni tabella MAC 16000
Standard PoE supportati 30W
Altre caratteristiche tecniche General Features:
L2 Features
Spanning Tree Protocol
802.1D Spanning Tree Protocol (STP)
802.1w Rapid Spanning Tree Protocol (RSTP)
802.1s Multiple Spanning Tree Protocol (MSTP), 64 instances
MAC Address Table
Up to 16K entries
Virtual Local Area Network (VLAN): 802.1Q tag-based VLAN – up to 4096 VLAN IDs
Port-based VLAN; MAC-based VLAN
Supports 4K VLAN
Port-based VLAN
IEEE 802.1Q VLAN
GVRP (256 VLAN)
IEEE 802.1v protocol-based VLAN IP Subnet-based VLAN MAC-based VLAN
Traffic Segmentation
L2 Virtual Private Network (Q-in-Q): Selective Q-in-Q
VLAN Translation
L2 Protocol tunneling (xSTP, CDP, VTP & PVST+, LLDP) CDP/PVST+ Filtering
Link Aggregation: Static Trunk
IEEE 802.3ad Link Aggregation Control Protocol Trunk groups: 16, up to 8 GE ports per group
Load Balancing: SA+DA, SA, DA, SIP+DIP, SIP, DIP
Quality of Service (QoS): Priority Queues: 8 hardware queues per port Traffic classification:
IEEE 802.1p CoS IP Precedence DSCP
Traffic Scheduling: Strict Priority
Weighted Round Robin Strict + WRR
Diffserv: Ingress policy map (police rate, remark CoS) Egress policy map (police rate, remark CoS/DSCP)
Rate Limiting (Ingress and Egress, per port base): GE: Resolution 64 Kbps ~ 1,000 Mbps
Traffic Scheduling: Strict Priority
Weighted Round Robin
Strict + WRR
Diffserv: Ingress policy map (police rate, remark CoS)
Egress policy map (police rate, remark CoS/DSCP)
Rate Limiting (Ingress and Egress, per port base):
GE: Resolution 64 Kbps ~ 1,000 Mbp
Port Mirroring (Supports One-to-One, Many-to-One)
IGMP Group
IGMP v1/v2/v3 Snooping
IGMP Proxy Reporting
IGMP Filtering
IGMP Throttling
IGMP Immediate Leave
IGMP Querier
IGMP router-port-expire-time
IGMP tcn-query-solicit
IGMP unregistered-data-flood
IPv6 Features
Native IPv6
IPv4/IPv6 Dual Protocol stack
IPv6 Address Types Stack: Unicast
IPv4/IPv6 Dual Protocol stack
IPv6 Address Types Stack: Unicast IPv6 Neighbor Discovery:
Duplicate address
Address resolution
Unreachable neighbor detection
Stateless auto-configuration Manual configuration Remote IPv6 ping
IPv6 Telnet support
IPv6 TFTP support
MLD Snooping v1/v2
IP source guard
IPv6 source guard
IPv6 Neighbor Discovery:
Remote IPv6 ping
IPv6 Telnet support
IPv6 TFTP support
Port Mirroring (Supports One-to-One, Many-to-One)
IGMP v1/v2/v3 Snooping
IGMP Proxy Reporting
IGMP Filtering
IGMP Throttling
IGMP Immediate Leave
IGMP Querier
IGMP router-port-expire-time
IGMP tcn-query-solicit
IGMP unregistered-data-flood
Dynamic Host Configuration Protocol (DHCP):
DHCP Snooping
DHCPv6 snooping
DHCP Relay
DHCP Server
DHCP Option 60, 82
PoE:
PoE Budget
320W@100~160VAC,50/60HZ
400W@200~240VAC,50/60HZ
(Its adjustable by Web page)
Power Output: Up to 30W per port
Pin Assignment: 1/2(+), 3/6(-)
Security:
Port Security (MAC Flooding Attack / MAC Spoofing Attack Prevention)
Login Security
RADIUS authentication
RADIUS accounting
TACACS + authentication
TACACS + accounting
TACACS + authorization
Management Interface Access Filtering (SNMP, Web, Telnet)
SSH (v1.5/v2.0) for security Telnet
SNMPv3
IPv6 ACL
Port security
PPPoE IA
Dynamic ARP Inspection
CPU guard
CPU/Memory threshold and alarm Denial of Service Protection: echo-chargen smurf tcp-flooding tcp-null-scan tcp-syn-fin-scan tcp-xmas-scan udp-flooding win-nuke
Storm Control: Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
ACLs: Suppoer L2/L3/L4 MAC Access control list
IEEE 802.1X port based and MAC based authentication Dynamic VLAN Assignment, Dynamic QoS assignment MAC authentication
Web authentication
Guest VLAN
L2/L3/L4 Access Control List
MAC Access control list (Source/Destination MAC, Ether type,
Priority ID/ VLAN ID)
IP standard access control list (Source IP)
IP extended access control list (Source/Destination IP, Protocol, TCP/UDP port number)
DHCP Snooping
DHCP Option 82
DHCP Option 82 Relay IP Source Guard
Management:
Web-based GUI
CLI
Telnet
SNMP v1, v2c, v3
Firmware upgrade via TFTP/HTTP/FTP server
Configuration file upload/download via TFTP/HTTP/FTP server Firmware auto upgrade
IP clustering (32 members) Firmware & Configuration:
RMON (groups 1, 2, 3 and 9)
SNTP/NTP
Event/Error Log
Syslog
Supports LLDP (802.1ab)
sFlow v4, v5
Cable diagnostics
SNMP management
L3:
IPv4 Static Route

CARATTERISTICHE FISICHE

Rack-Mountable Sì
Larghezza 440 mm
Nr. unità rack 2
Profondità 330 mm
Altezza 44.5 mm
Peso 4520 gr

ALIMENTAZIONE

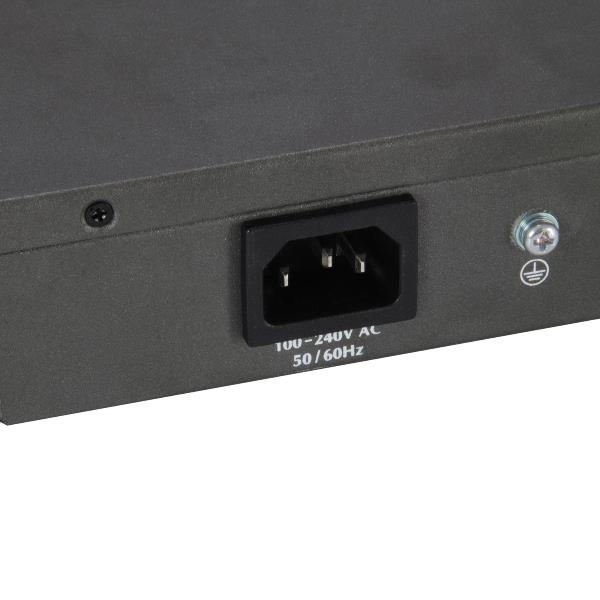

Power Supply AC
Alimentatore incluso Sì
Consumo energetico 437.7 W
Tipologia di alimentazione ridondata Nessuna ridondanza di alimentazione

CONNETTIVITÀ

Nr. porte LAN 52 N
Tipo e velocità porte LAN RJ-45 10/100/1000
Porta Console Sì
Altre informazioni sulla connettività Port:

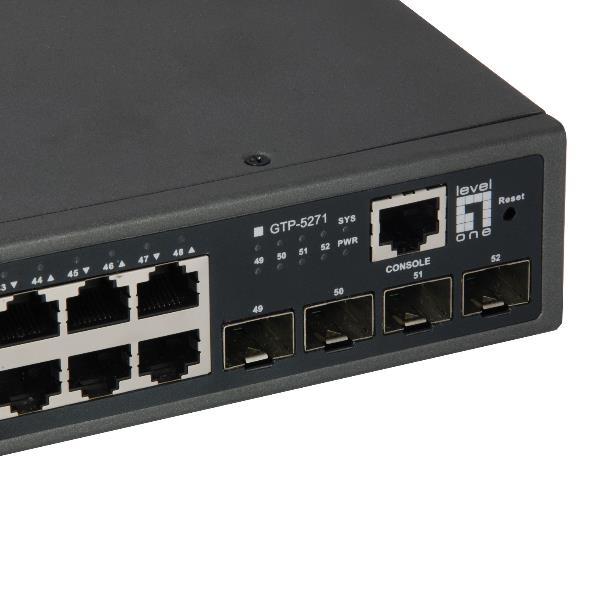

48x 10/100/1000Mbps Auto-Negotiation ports
4x 1000/10000Mbps SFP+ port
1x RJ45 Console Port
Standards:
IEEE 802.3u 100BASE-TX, Fast Ethernet
IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
IEEE 802.3z 1000BASE-X,Gigabit Ethernet
IEEE 802.3z (1000BASE-SX/LX/LHX/ZX) transceivers
IEEE 802.3x for full-duplex mode
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), 64 instances
IEEE 802.1Q VLAN
IEEE 802.1v protocol-based VLAN
IEEE 802.3ad Link Aggregation Control Protocol
IEEE 802.1p CoS
IEEE 802.1X port based and MAC based authentication
IEEE 802.3ah Ethernet Link OAM
IEEE 802.1ag Connectivity Fault Management
Protocols:
Layer 2 Tunneling Protocol (STP, CDP, VTP , PAGP, LACP,UDLD)

CONFEZIONE

Altri cavi inclusi Cavo Alimentazione, Cavo Console
Manuali Guida Rapida
Kit e accessori Vari Kit Installazione Rack 19″

CONFORMITÀ

Dichiarazione di Conformità EMI/EMS: CE
Environmental Test: RoHS

Informazioni aggiuntive

Peso5,220 kg
Dimensioni39,0000 × 52,0000 × 9,4000 cm
MarcaLEVELONE
ClasseA — sempre ordinabile
FornitoreEsprinet
Power over Ethernet (PoE)Sì
GestioneManaged (CLI)
Supporto Routing (Layer 3)Sì
Nr. porte PoE48
Vlan supportate4096
StackableSì
PoE Budget400 W
Quality Of Service (QOS)Sì
Modalità StackingVirtual Stacking
Dimensioni tabella MAC16000
Standard PoE supportati30W
Altre caratteristiche tecnicheGeneral Features: L2 Features Spanning Tree Protocol 802.1D Spanning Tree Protocol (STP) 802.1w Rapid Spanning Tree Protocol (RSTP) 802.1s Multiple Spanning Tree Protocol (MSTP), 64 instances MAC Address Table Up to 16K entries Virtual Local Area Network (VLAN): 802.1Q tag-based VLAN - up to 4096 VLAN IDs Port-based VLAN; MAC-based VLAN Supports 4K VLAN Port-based VLAN IEEE 802.1Q VLAN GVRP (256 VLAN) IEEE 802.1v protocol-based VLAN IP Subnet-based VLAN MAC-based VLAN Traffic Segmentation L2 Virtual Private Network (Q-in-Q): Selective Q-in-Q VLAN Translation L2 Protocol tunneling (xSTP, CDP, VTP & PVST+, LLDP) CDP/PVST+ Filtering Link Aggregation: Static Trunk IEEE 802.3ad Link Aggregation Control Protocol Trunk groups: 16, up to 8 GE ports per group Load Balancing: SA+DA, SA, DA, SIP+DIP, SIP, DIP Quality of Service (QoS): Priority Queues: 8 hardware queues per port Traffic classification: IEEE 802.1p CoS IP Precedence DSCP Traffic Scheduling: Strict Priority Weighted Round Robin Strict + WRR Diffserv: Ingress policy map (police rate, remark CoS) Egress policy map (police rate, remark CoS/DSCP) Rate Limiting (Ingress and Egress, per port base): GE: Resolution 64 Kbps ~ 1,000 Mbps Traffic Scheduling: Strict Priority Weighted Round Robin Strict + WRR Diffserv: Ingress policy map (police rate, remark CoS) Egress policy map (police rate, remark CoS/DSCP) Rate Limiting (Ingress and Egress, per port base): GE: Resolution 64 Kbps ~ 1,000 Mbp Port Mirroring (Supports One-to-One, Many-to-One) IGMP Group IGMP v1/v2/v3 Snooping IGMP Proxy Reporting IGMP Filtering IGMP Throttling IGMP Immediate Leave IGMP Querier IGMP router-port-expire-time IGMP tcn-query-solicit IGMP unregistered-data-flood IPv6 Features Native IPv6 IPv4/IPv6 Dual Protocol stack IPv6 Address Types Stack: Unicast IPv4/IPv6 Dual Protocol stack IPv6 Address Types Stack: Unicast IPv6 Neighbor Discovery: Duplicate address Address resolution Unreachable neighbor detection Stateless auto-configuration Manual configuration Remote IPv6 ping IPv6 Telnet support IPv6 TFTP support MLD Snooping v1/v2 IP source guard IPv6 source guard IPv6 Neighbor Discovery: Remote IPv6 ping IPv6 Telnet support IPv6 TFTP support Port Mirroring (Supports One-to-One, Many-to-One) IGMP v1/v2/v3 Snooping IGMP Proxy Reporting IGMP Filtering IGMP Throttling IGMP Immediate Leave IGMP Querier IGMP router-port-expire-time IGMP tcn-query-solicit IGMP unregistered-data-flood Dynamic Host Configuration Protocol (DHCP): DHCP Snooping DHCPv6 snooping DHCP Relay DHCP Server DHCP Option 60, 82 PoE: PoE Budget 320W@100~160VAC,50/60HZ 400W@200~240VAC,50/60HZ (Its adjustable by Web page) Power Output: Up to 30W per port Pin Assignment: 1/2(+), 3/6(-) Security: Port Security (MAC Flooding Attack / MAC Spoofing Attack Prevention) Login Security RADIUS authentication RADIUS accounting TACACS + authentication TACACS + accounting TACACS + authorization Management Interface Access Filtering (SNMP, Web, Telnet) SSH (v1.5/v2.0) for security Telnet SNMPv3 IPv6 ACL Port security PPPoE IA Dynamic ARP Inspection CPU guard CPU/Memory threshold and alarm Denial of Service Protection: echo-chargen smurf tcp-flooding tcp-null-scan tcp-syn-fin-scan tcp-xmas-scan udp-flooding win-nuke Storm Control: Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port ACLs: Suppoer L2/L3/L4 MAC Access control list IEEE 802.1X port based and MAC based authentication Dynamic VLAN Assignment, Dynamic QoS assignment MAC authentication Web authentication Guest VLAN L2/L3/L4 Access Control List MAC Access control list (Source/Destination MAC, Ether type, Priority ID/ VLAN ID) IP standard access control list (Source IP) IP extended access control list (Source/Destination IP, Protocol, TCP/UDP port number) DHCP Snooping DHCP Option 82 DHCP Option 82 Relay IP Source Guard Management: Web-based GUI CLI Telnet SNMP v1, v2c, v3 Firmware upgrade via TFTP/HTTP/FTP server Configuration file upload/download via TFTP/HTTP/FTP server Firmware auto upgrade IP clustering (32 members) Firmware & Configuration: RMON (groups 1, 2, 3 and 9) SNTP/NTP Event/Error Log Syslog Supports LLDP (802.1ab) sFlow v4, v5 Cable diagnostics SNMP management L3: IPv4 Static Route
Rack-MountableSì
Larghezza440 mm
Nr. unità rack2
Profondità330 mm
Altezza44.5 mm
Peso4520 gr
Power SupplyAC
Alimentatore inclusoSì
Consumo energetico437.7 W
Tipologia di alimentazione ridondataNessuna ridondanza di alimentazione
Nr. porte LAN52 N
Tipo e velocità porte LANRJ-45 10/100/1000
Porta ConsoleSì
Altre informazioni sulla connettivitàPort: 48x 10/100/1000Mbps Auto-Negotiation ports 4x 1000/10000Mbps SFP+ port 1x RJ45 Console Port Standards: IEEE 802.3u 100BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3z 1000BASE-X,Gigabit Ethernet IEEE 802.3z (1000BASE-SX/LX/LHX/ZX) transceivers IEEE 802.3x for full-duplex mode IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), 64 instances IEEE 802.1Q VLAN IEEE 802.1v protocol-based VLAN IEEE 802.3ad Link Aggregation Control Protocol IEEE 802.1p CoS IEEE 802.1X port based and MAC based authentication IEEE 802.3ah Ethernet Link OAM IEEE 802.1ag Connectivity Fault Management Protocols: Layer 2 Tunneling Protocol (STP, CDP, VTP , PAGP, LACP,UDLD)
Altri cavi inclusiCavo Alimentazione, Cavo Console
ManualiGuida Rapida
Kit e accessori VariKit Installazione Rack 19"
Dichiarazione di ConformitàEMI/EMS: CE Environmental Test: RoHS
