NETGEAR GSM4230UP-100EUS AV Line M4250-26G4F-PoE++ 24x1G Ultra90 PoE++ 802.3bt 1,440W 2x1G and 4xSFP Managed Switch

4.550,41 €

Prezzo IVA esclusa
Codice MEPA99045453ABX

POE++ MANAGED SWITCH 24X1G

Prodotto su ordinazione. Ordinato al produttore su richiesta. Il tempo di consegna non è fornito nel catalogo e va confermato.

Disponibile su ordinazione

Codice:45453ABX
Categoria:
€Finanziabile con fondi PNRR e bandi

Acquistabile con i fondi degli avvisi attivi — ti aiutiamo a individuare il bando giusto per la tua scuola.

Vedi tutti i bandi attivi →

Descrizione

• 24-port 10/100/1000BASE-T (RJ45) Ultra90 PoE++ with 1,440W PoE budget

• 2-port 10/100/1000BASE-T (RJ45)

• 4-port 1000BASE-X (SFP)

• Compatible 802.3af (15.4W), 802.3at (30W), 802.3bt (60, 75 and 90W)

• 2 internal, fixed PSUs (C14 inlets) with embedded RPS/EPS function

• When one PSU is used, PoE budget is 720W

• When two PSU are used, PoE budget is 1,440W

• 60 Gbps non-blocking fabric across 30 ports

• Out-of-band 1G Ethernet management port

• USB-C and RJ45 RS232 console ports and USB-A storage port

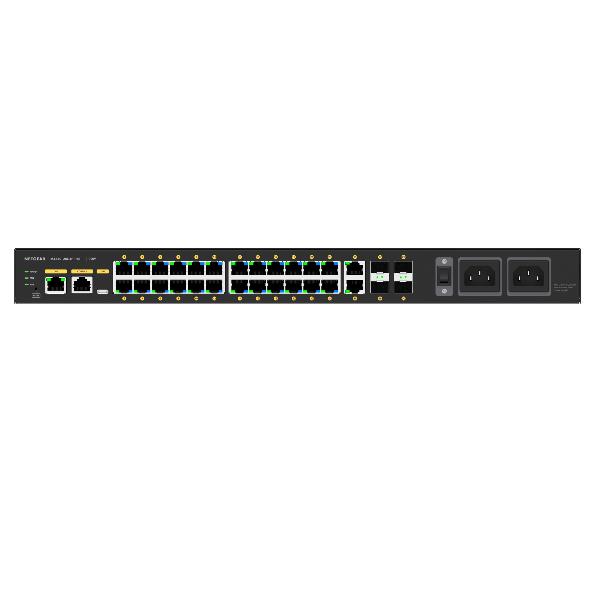

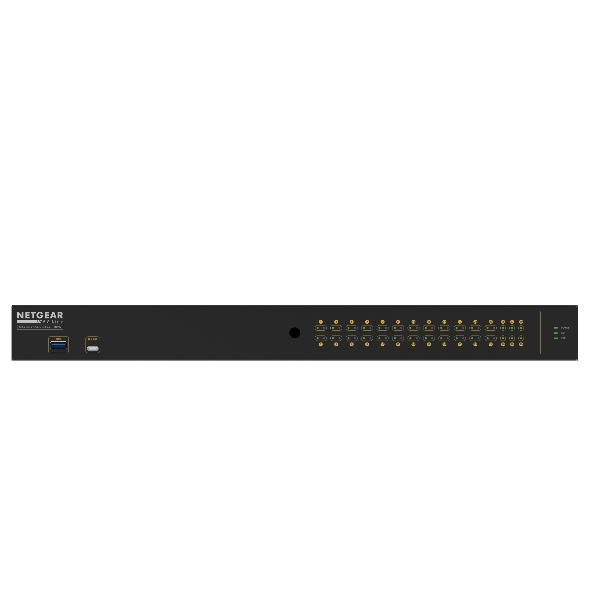

• Front black display panel and all ports in the back

• Possible reversed mounting with ports in the front

• Rack-mounting standard brackets

• Longer brackets for recessed mounting (2 inches / 5 cm)

• Threaded hole in front (1xM10) for clamps

• Threaded holes on the bottom (4xM5) for 50x100mm VESA plates

• Selectable fan modes for quiet or cool operation

• Dimensions (WxDxH): 440 x 43.2 x 400 mm

• Weight: 6.75Kg (14.87lb)

CARATTERISTICHE TECNICHE

Power over Ethernet (PoE) Sì
Gestione Layer 2+
Nr. porte PoE 24
Vlan supportate 4093
PoE Budget 1440 W
Quality Of Service (QOS) Sì
Modalità Stacking No
Dimensioni tabella MAC 16000
Standard PoE supportati 15,4W, 30W
Altre caratteristiche tecniche 24-port 10/100/1000BASE-T (RJ45) Ultra90 PoE++ with 1,440W PoE budget
2-port 10/100/1000BASE-T (RJ45)
4-port 1000BASE-X (SFP)
Compatible 802.3af (15.4W), 802.3at (30W), 802.3bt (60, 75 and 90W)
2 internal, fixed PSUs (C14 inlets) with embedded RPS/EPS function
When one PSU is used, PoE budget is 720W
When two PSU are used, PoE budget is 1,440W
60 Gbps non-blocking fabric across 30 ports
Out-of-band 1G Ethernet management port
USB-C and RJ45 RS232 console ports and USB-A storage port
Front black display panel and all ports in the back
Possible reversed mounting with ports in the front
Rack-mounting standard brackets
Longer brackets for recessed mounting (2 inches / 5 cm)
Threaded hole in front (1xM10) for clamps
Threaded holes on the bottom (4xM5) for 50x100mm VESA plates
Selectable fan modes for quiet or cool operation
Dimensions (WxDxH): 440 x 43.2 x 400 mm
Weight: 6.75Kg (14.87lb)

CARATTERISTICHE FISICHE

Rack-Mountable Sì
Larghezza 440 mm
Nr. unità rack 1
Profondità 400 mm
Altezza 44 mm
Peso 6750 gr
Altre caratteristiche fisiche 24-port 10/100/1000BASE-T (RJ45) Ultra90 PoE++ with 1,440W PoE budget
2-port 10/100/1000BASE-T (RJ45)
4-port 1000BASE-X (SFP)
Compatible 802.3af (15.4W), 802.3at (30W), 802.3bt (60, 75 and 90W)
2 internal, fixed PSUs (C14 inlets) with embedded RPS/EPS function
When one PSU is used, PoE budget is 720W
When two PSU are used, PoE budget is 1,440W
60 Gbps non-blocking fabric across 30 ports
Out-of-band 1G Ethernet management port
USB-C and RJ45 RS232 console ports and USB-A storage port
Front black display panel and all ports in the back
Possible reversed mounting with ports in the front
Rack-mounting standard brackets
Longer brackets for recessed mounting (2 inches / 5 cm)
Threaded hole in front (1xM10) for clamps
Threaded holes on the bottom (4xM5) for 50x100mm VESA plates
Selectable fan modes for quiet or cool operation
Dimensions (WxDxH): 440 x 43.2 x 400 mm
Weight: 6.75Kg (14.87lb)

ALIMENTAZIONE

Power Supply AC
Alimentatore incluso Sì
Consumo energetico 1734 W
Tipologia di alimentazione ridondata Nessuna ridondanza di alimentazione

CONNETTIVITÀ

Nr. porte LAN 26 N
Tipo e velocità porte LAN RJ-45 10/100/1000
Nr. porte Uplink 4
Tipo e velocità porte Uplink SFP 1GbE
Porta Console Sì
Nr. porte fruibili contemporaneamente (LAN + Uplink) 30
Altre informazioni sulla connettività 24-port 10/100/1000BASE-T (RJ45) Ultra90 PoE++ with 1,440W PoE budget
2-port 10/100/1000BASE-T (RJ45)
4-port 1000BASE-X (SFP)
Compatible 802.3af (15.4W), 802.3at (30W), 802.3bt (60, 75 and 90W)
2 internal, fixed PSUs (C14 inlets) with embedded RPS/EPS function
When one PSU is used, PoE budget is 720W
When two PSU are used, PoE budget is 1,440W
60 Gbps non-blocking fabric across 30 ports
Out-of-band 1G Ethernet management port
USB-C and RJ45 RS232 console ports and USB-A storage port
Front black display panel and all ports in the back
Possible reversed mounting with ports in the front
Rack-mounting standard brackets
Longer brackets for recessed mounting (2 inches / 5 cm)
Threaded hole in front (1xM10) for clamps
Threaded holes on the bottom (4xM5) for 50x100mm VESA plates
Selectable fan modes for quiet or cool operation
Dimensions (WxDxH): 440 x 43.2 x 400 mm
Weight: 6.75Kg (14.87lb)

CONFEZIONE

Altri cavi inclusi · M4250-26G4F-PoE++ (GSM4230UP)
· Power cord(s)
· Console USB Type-C and RJ45-DB9 cables
· Rackmounting standard brackets
· Longer brackets for recessed mounting
· Rubber footpads for tabletop installation
· Installation guide
Software · M4250-26G4F-PoE++ (GSM4230UP)
· Power cord(s)
· Console USB Type-C and RJ45-DB9 cables
· Rackmounting standard brackets
· Longer brackets for recessed mounting
· Rubber footpads for tabletop installation
· Installation guide
Manuali · M4250-26G4F-PoE++ (GSM4230UP)
· Power cord(s)
· Console USB Type-C and RJ45-DB9 cables
· Rackmounting standard brackets
· Longer brackets for recessed mounting
· Rubber footpads for tabletop installation
· Installation guide
Kit e accessori Vari · M4250-26G4F-PoE++ (GSM4230UP)
· Power cord(s)
· Console USB Type-C and RJ45-DB9 cables
· Rackmounting standard brackets
· Longer brackets for recessed mounting
· Rubber footpads for tabletop installation
· Installation guide

SOLUZIONI

Digital Signage Sì

Informazioni aggiuntive

Peso9,526 kg
Dimensioni46,3000 × 53,0000 × 12,0000 cm
MarcaNETGEAR
ClasseB — su ordinazione
FornitoreEsprinet
Power over Ethernet (PoE)Sì
GestioneLayer 2+
Nr. porte PoE24
Vlan supportate4093
PoE Budget1440 W
Quality Of Service (QOS)Sì
Modalità StackingNo
Dimensioni tabella MAC16000
Standard PoE supportati15,4W, 30W
Altre caratteristiche tecniche24-port 10/100/1000BASE-T (RJ45) Ultra90 PoE++ with 1,440W PoE budget 2-port 10/100/1000BASE-T (RJ45) 4-port 1000BASE-X (SFP) Compatible 802.3af (15.4W), 802.3at (30W), 802.3bt (60, 75 and 90W) 2 internal, fixed PSUs (C14 inlets) with embedded RPS/EPS function When one PSU is used, PoE budget is 720W When two PSU are used, PoE budget is 1,440W 60 Gbps non-blocking fabric across 30 ports Out-of-band 1G Ethernet management port USB-C and RJ45 RS232 console ports and USB-A storage port Front black display panel and all ports in the back Possible reversed mounting with ports in the front Rack-mounting standard brackets Longer brackets for recessed mounting (2 inches / 5 cm) Threaded hole in front (1xM10) for clamps Threaded holes on the bottom (4xM5) for 50x100mm VESA plates Selectable fan modes for quiet or cool operation Dimensions (WxDxH): 440 x 43.2 x 400 mm Weight: 6.75Kg (14.87lb)
Rack-MountableSì
Larghezza440 mm
Nr. unità rack1
Profondità400 mm
Altezza44 mm
Peso6750 gr
Altre caratteristiche fisiche24-port 10/100/1000BASE-T (RJ45) Ultra90 PoE++ with 1,440W PoE budget 2-port 10/100/1000BASE-T (RJ45) 4-port 1000BASE-X (SFP) Compatible 802.3af (15.4W), 802.3at (30W), 802.3bt (60, 75 and 90W) 2 internal, fixed PSUs (C14 inlets) with embedded RPS/EPS function When one PSU is used, PoE budget is 720W When two PSU are used, PoE budget is 1,440W 60 Gbps non-blocking fabric across 30 ports Out-of-band 1G Ethernet management port USB-C and RJ45 RS232 console ports and USB-A storage port Front black display panel and all ports in the back Possible reversed mounting with ports in the front Rack-mounting standard brackets Longer brackets for recessed mounting (2 inches / 5 cm) Threaded hole in front (1xM10) for clamps Threaded holes on the bottom (4xM5) for 50x100mm VESA plates Selectable fan modes for quiet or cool operation Dimensions (WxDxH): 440 x 43.2 x 400 mm Weight: 6.75Kg (14.87lb)
Power SupplyAC
Alimentatore inclusoSì
Consumo energetico1734 W
Tipologia di alimentazione ridondataNessuna ridondanza di alimentazione
Nr. porte LAN26 N
Tipo e velocità porte LANRJ-45 10/100/1000
Nr. porte Uplink4
Tipo e velocità porte UplinkSFP 1GbE
Porta ConsoleSì
Nr. porte fruibili contemporaneamente (LAN + Uplink)30
Altre informazioni sulla connettività24-port 10/100/1000BASE-T (RJ45) Ultra90 PoE++ with 1,440W PoE budget 2-port 10/100/1000BASE-T (RJ45) 4-port 1000BASE-X (SFP) Compatible 802.3af (15.4W), 802.3at (30W), 802.3bt (60, 75 and 90W) 2 internal, fixed PSUs (C14 inlets) with embedded RPS/EPS function When one PSU is used, PoE budget is 720W When two PSU are used, PoE budget is 1,440W 60 Gbps non-blocking fabric across 30 ports Out-of-band 1G Ethernet management port USB-C and RJ45 RS232 console ports and USB-A storage port Front black display panel and all ports in the back Possible reversed mounting with ports in the front Rack-mounting standard brackets Longer brackets for recessed mounting (2 inches / 5 cm) Threaded hole in front (1xM10) for clamps Threaded holes on the bottom (4xM5) for 50x100mm VESA plates Selectable fan modes for quiet or cool operation Dimensions (WxDxH): 440 x 43.2 x 400 mm Weight: 6.75Kg (14.87lb)
Altri cavi inclusi· M4250-26G4F-PoE++ (GSM4230UP) · Power cord(s) · Console USB Type-C and RJ45-DB9 cables · Rackmounting standard brackets · Longer brackets for recessed mounting · Rubber footpads for tabletop installation · Installation guide
Software· M4250-26G4F-PoE++ (GSM4230UP) · Power cord(s) · Console USB Type-C and RJ45-DB9 cables · Rackmounting standard brackets · Longer brackets for recessed mounting · Rubber footpads for tabletop installation · Installation guide
Manuali· M4250-26G4F-PoE++ (GSM4230UP) · Power cord(s) · Console USB Type-C and RJ45-DB9 cables · Rackmounting standard brackets · Longer brackets for recessed mounting · Rubber footpads for tabletop installation · Installation guide
Kit e accessori Vari· M4250-26G4F-PoE++ (GSM4230UP) · Power cord(s) · Console USB Type-C and RJ45-DB9 cables · Rackmounting standard brackets · Longer brackets for recessed mounting · Rubber footpads for tabletop installation · Installation guide
Digital SignageSì
