pH-electrode, plastic body, gel, BNC

Funzione e applicazioni

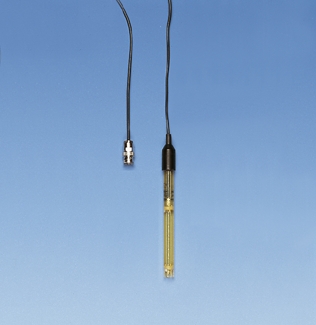

This simple pH single rod measuring cell, consisting of a glass electrode and a silver / silver chloride reference electrode with fixed cable with BNC plug, with plastic shaft is distinguished by its robust design.

Vantaggi

• Low- maintenance because of gel electrolyte.
• The glass membrane of the pH electrode is relatively well protected against mechanical damage through the shaft that extends through the membrane.

Dotazione e dati tecnici

• Electrode with plastic shaft and spherical membrane
• Electrolyte refillable
• Measuring range: 0 … 14 pH
• Isopotential point: pH = 7
• Temperature range: 0 … +80 °C
• Double reference lead
• Dimensions of the shaft (mm): 120 x 12
• Cable length: 1 m
