Docking USB C 17in1 3video output HDMI 2xDP PD100W

Descrizione

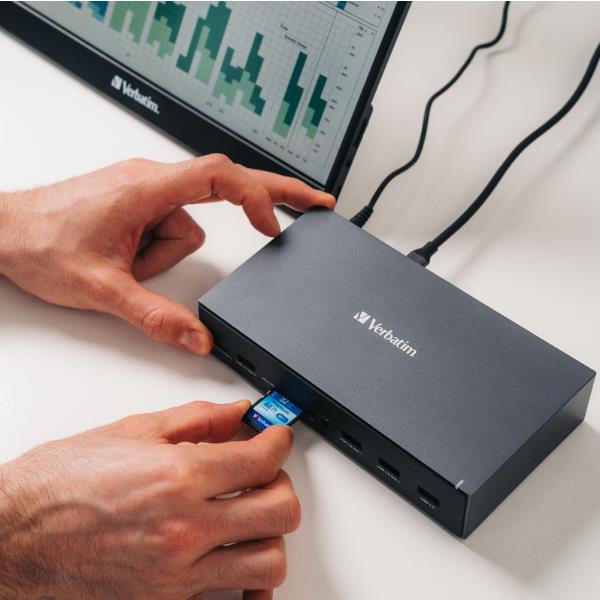

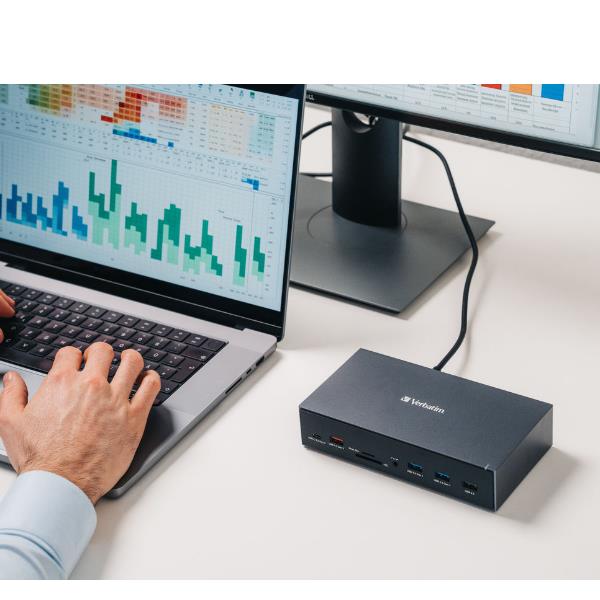

Il Verbatim CDS-17 è una docking station professionale
con 17 porte.

Il CDS-17 possiede una USB-C 3.2 Gen2 e quattro
Porte USB-A, ideali per dispositivi come mouse, tastiera,
and so on. La porta RJ45 garantisce una connettività di rete stabile,
mentre gli slot SD/MicroSD si rivolgono a una memoria versatile
esigenze della carta.

General Information
Product dimensions LxWxD 180 x 100 x 41 mm
Product weight 998
Material Aluminum+ABS
Colour Black/Grey
Connection
Host Port USB-C Host to connect to your device.
Power IN DC Power port.
USB Ports 1 x USB-A 2.0: up to 480Mb/s – Design for the connection of 2.4 GHz wireless
devices, such as wireless keyboards/mouse adapters etc.
2 x USB-A 3.2 Gen1: up to 5Gb/s backwards compatible with USB 2.0.
1 x USB-A 3.2 Gen2: up to 10Gb/s backwards compatible with USB 3.2 Gen1
and USB 2.0.
1 x USB-C 3.2 Gen2: up to 10Gb/s
USB-C and USB-A: Power: 5V 0.9A
Video* 1 x HDMI: 8K/30Hz, 4K/60Hz/10bit, 1080p/60Hz/48bit, 720p/60Hz/48/bit
Bandwidth: Max 12G per Lan
2 x HDMI: 4K/60Hz/10bit, 1080p/60Hz/48bit, 720p/60Hz/48/bit
Bandwidth: Max 6G per Lan
2 x DP 1.4: 4K/60Hz/10bit,1080p/60Hz/48bit, 720p/60Hz/48/bit.Supports
1080p/720p – Bandwidth: Max 5.4G per Lan
HDMI and DP: Support 1080p/720p
Support SST (Single-Stream Transport) & MST (Multi-Stream Transport).
This Docking Station uses a DisplayLink Chip, you need to install the
“DisplayLink Manager” App to experience the full video function.
Download the latest “DisplayLink Manager” App: https://www.synaptics.com/
products/displaylink-graphics/downloads
Please choose the App according to your system, available for Windows,
MacOS, Android, Chrome OS and Ubuntu.
Audio 1 x Audio jack 3.5mm: in/out /8 channel sampling rate 192khz/16bit
Memory Card 1 x SD 4.0: Read speed: Up to 250MB/s, Write speed: Up to 250MB/s
1 x Micro SD 3.0 Read speed: Up to 104MB/s, Write speed: Up to 80MB/s
Ethernet 1 x RJ45, up to 1Gb/s
Other Features
Supported OS Windows 11, 10; MacOS 10.2 or higher
Status LED Yes
Power Switch Yes
Power Supply DC 120W power adapter
DC output Max. 20V6A 120W and provide 100W power delivery to PC
Safety Lock Kensington Security Lock Slot
Storage and Operating Conditions
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity 20%-90%RH
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Storage Humidity 5%-95%RH
